ParentControl Guard · OpenWrt Parental Control System

🎯 Background & Motivation

In home networks, managing children’s screen time and preventing addiction to mobile games or short-form video apps is a common challenge for parents. However, conventional solutions suffer from fundamental limitations:

1. DNS-Based Filtering Is Fragile: Easily bypassed by switching to private DNS, DoH (DNS-over-HTTPS), or DoT (DNS-over-TLS on port 853/443).
2. Transparent Proxy Conflicts: OpenWrt routers often run routing proxies (such as OpenClash or Passwall), which intercept traffic before standard firewall rules take effect.
3. Privacy Concerns in Commercial Solutions: Most proprietary routers send unencrypted browsing logs to cloud vendors.

ParentControl Guard was engineered to solve these issues: 100% on-device execution, kernel-level packet inspection, lightweight single-binary deployment, and multi-layered anti-bypass defense.

🚀 Key Features & Architectural Goals

• 🎮 Kernel-Level L7 DPI Engine: Leverages kmod-oaf in the Netfilter mangle table PREROUTING chain (highest priority) to identify and drop packets from games, short videos, and streaming services before proxy interception.
• ⏱️ Flexible Time Scheduling & Quota System: Configurable multi-interval lockout schedules (supporting overnight intervals), Token Bucket daily active usage quotas, and instant lock with temporary reward extensions (+15m/+30m/+1h).
• 🛡️ Robust Anti-Bypass Protections: Enforces Google/Bing/Baidu SafeSearch, blocks rogue DoH/DoT ports, and detects randomized MAC addresses.
• 📱 Standalone Responsive Web UI: Single Go binary with embedded assets and 8 international languages, secured by a 4-digit PIN lock.
• 🍏 Native Companion Apps with Shared Swift Core: Native iOS (SwiftUI) and Android apps sharing a pure Swift business and networking engine (ParentControlCore) via C-FFI / JNI.
• ☁️ Dual Cloud Relay Modes: Supports Cloudflare Workers (Serverless + KV) and self-hosted Go WebSocket relays for sub-second remote control outside the home network without a public IP.

🏗️ System Architecture & Data Pipeline

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

[ Client Devices on LAN ]
       │ (Raw IP Traffic)
       ▼
[ Netfilter: mangle PREROUTING ] ───► [ kmod-oaf L7 DPI Signature Matcher ]
       │                                              │ (Blacklisted App Detected)
       ├──────────────────────────────────────────────┴──► [ Immediate DROP / REJECT ]
       ▼ (Permitted Safe Traffic)
[ Forwarding / Routing / Proxy ]

─────────────────────────────────────────────────────────────────────────────
[ Go Daemon (ParentControl Guard) ]
       ├── Local SQLite & Configuration Storage
       ├── Embedded Web Console
       ├── Token Bucket Active-Duration Calculator
       └── WebSocket Client ◄───► [ Cloudflare Workers Relay ] ◄───► [ Mobile App ]

🖼️ User Interface & Showcase

1. Modern Web Dashboard Overview

2. LAN Device Discovery & Real-Time Management

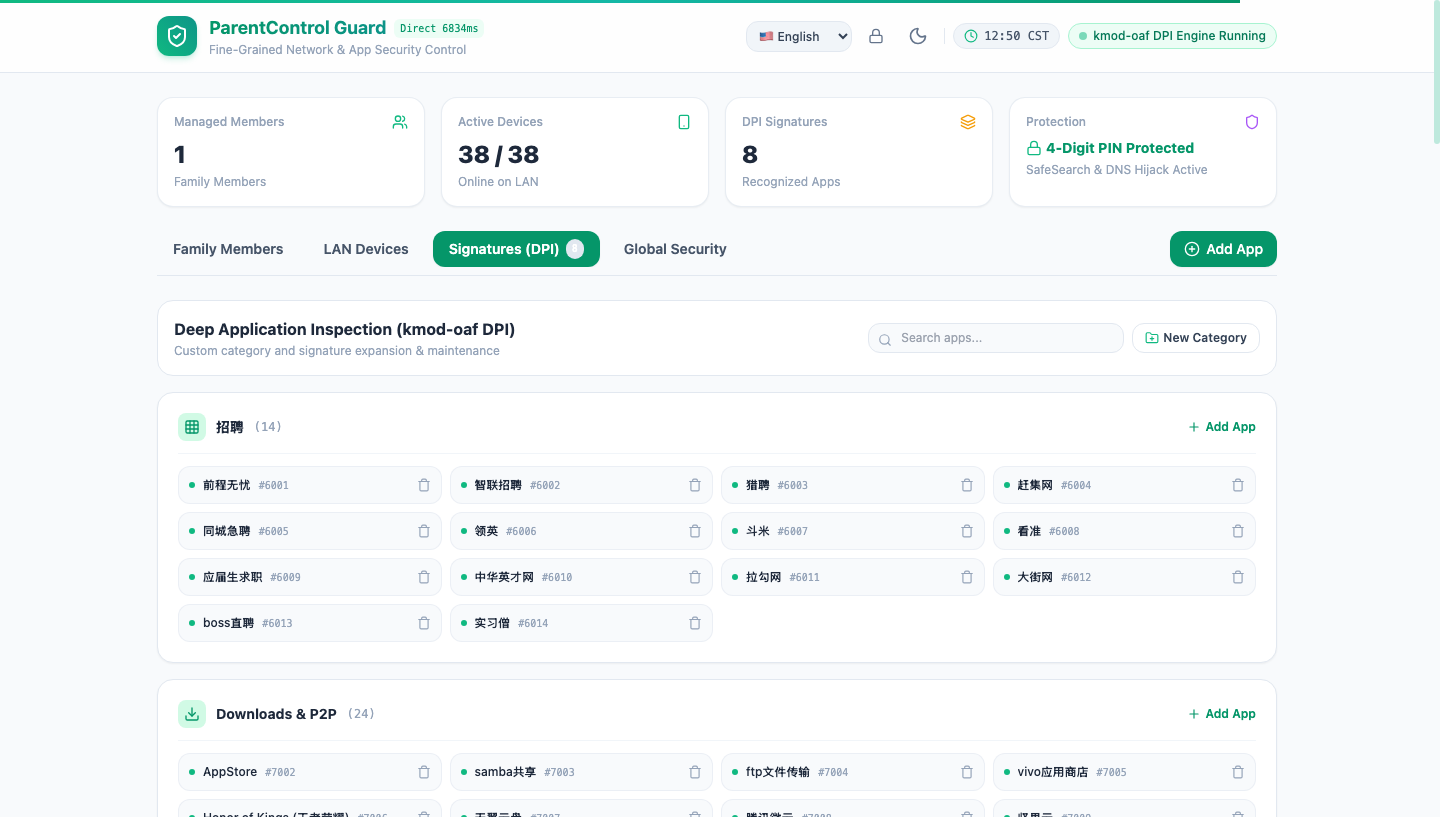

3. Kernel DPI Application Signature Library

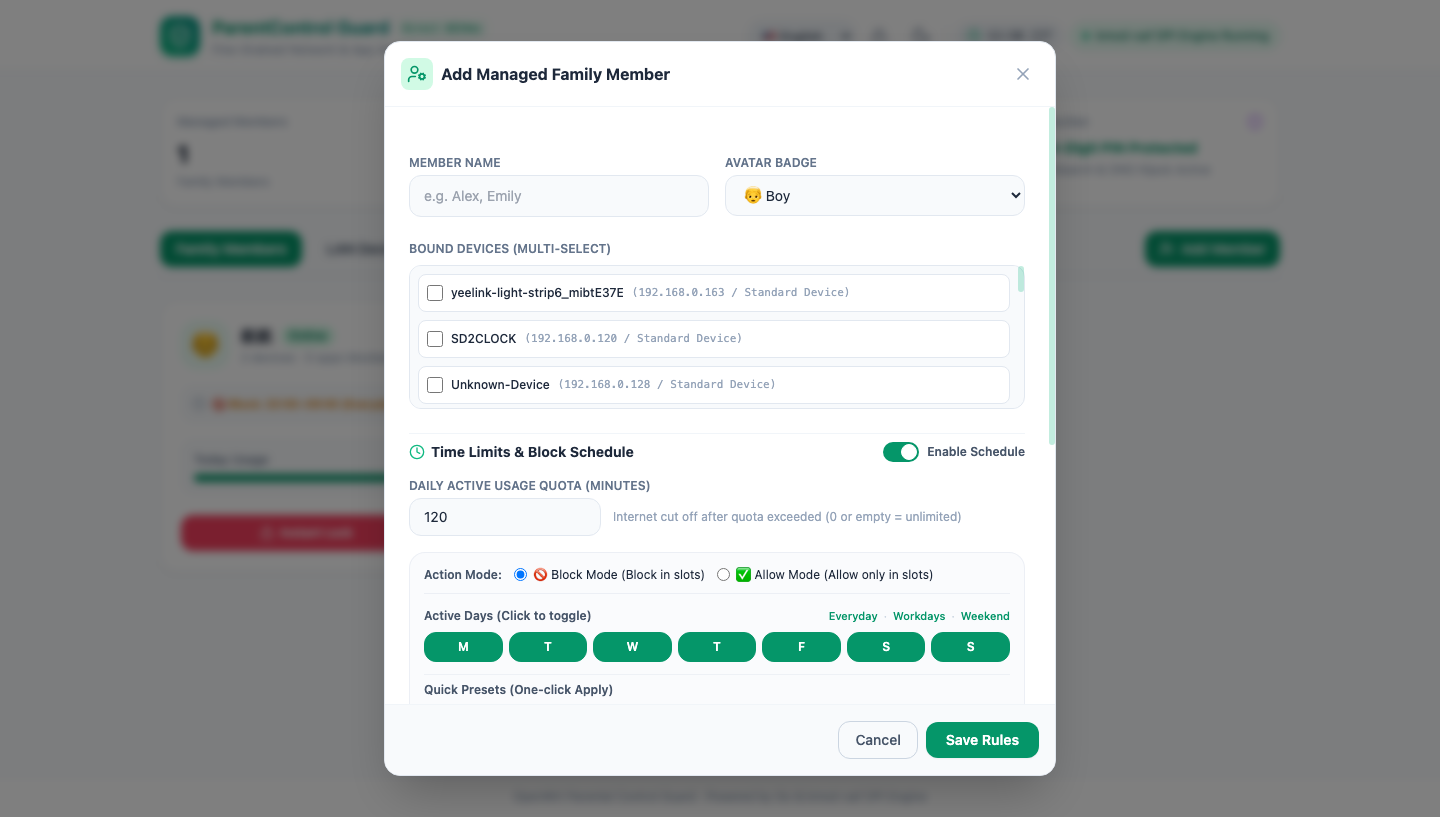

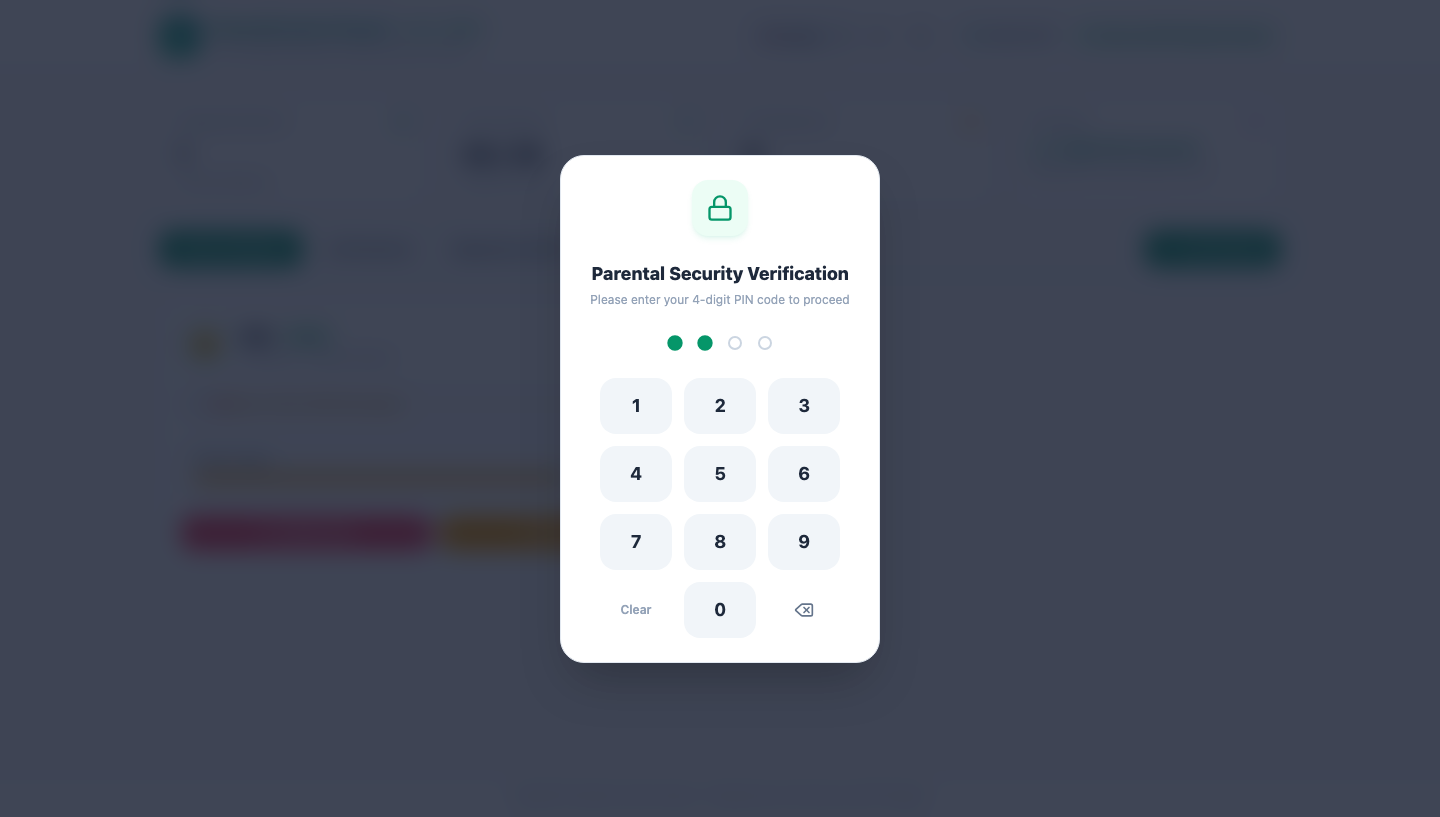

4. Rule Configuration & PIN Security Lock

🛠️ Engineering Highlights

1. Zero External Dependency Binary: Uses Go embed.FS to bundle all web assets into a single lightweight binary, ensuring effortless installation on flash-constrained router hardware.
2. Noise-Filtering Traffic Algorithm: Background push notifications and WebSocket heartbeats are filtered out so that only real human interactive usage counts toward the daily screen quota.
3. Cross-Platform Swift Core: Rather than rewriting network state machines twice, the core logic is written in Swift and exposed to Android via C-FFI / JNI.

📈 Implementation Status

• Multi-architecture OpenWrt packages (x86_64, aarch64, arm, mips)
• Kernel L7 DPI signature matching & packet dropping
• Responsive Web console with PIN lock screen
• Multi-language localization (EN / ZH / JA / DE / FR / ES / RU / ZHTW)
• Cloudflare Workers bidirectional relay
• Native SwiftUI client integration

🔗 Links

• Project Type: Proprietary Gateway System (Private Deployment)
• Platform: OpenWrt 21.02 - 23.05
